Exceeding the demands of 21st century, the W501 is packed with wide array of features to make presenting both easier and more exciting than ever before…
The environmentally friendly W501 has energy saving features including Eco+ lamp power management, <0.5W standby mode and auto power off, saving you both time and money. Our unique Optoma Colour Guarantee ensures hassle-free, long-lasting projection.

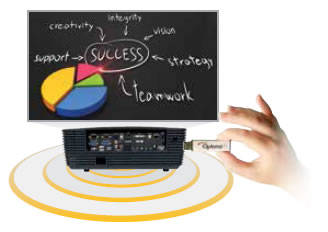

Enjoy hassle-free presenting using the USB Reader to project a JPEG presentation directly from a USB flash drive.

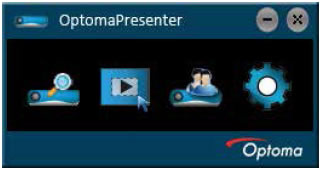

Alternatively view up to 4 PC/Laptops side-by-side at the same time, using the free Optoma Presenter software...
...or even broadcast your presentation across a wired/wireless network to as many as 8 projectors simultaneously.

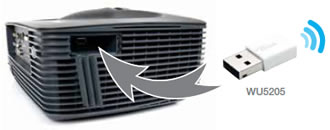

Wireless support requires the optional Optoma mini-WiFi dongle accessory, available separately.
Using the inherent speed of DLP® technology, Optoma Full 3D projectors can output video and images at an astonishing rate of 120Hz, allowing you to show full screen, full colour, stereoscopic 3D. The 3D effect is generated by splitting this signal into two standard video streams, one for each eye. Using DLP® Link™ technology, the 3D glasses synchronise with the image on screen to filter each stream to the correct eye. Your brain then combines the two streams to make them jump into life.
The W501 supports multiple 3D formats from various devices such as PC, Blu-ray 3D™, Sony® PS3, Microsoft® Xbox 360 or 3D TV broadcast systems.
This Full HD projector accepts a wide variety of computer and video input signals. Connectivity includes: HDMI, DVI-D, dual VGA (Component via adaptor), S-Video, Composite, USB Reader, VGA-Out, RS232, RJ45 and +12V trigger. In addition the optional Wi-Fi accessory can be securely connected to a dedicated hidden USB port.
Five audio inputs for HDMI, PC, video and microphone sources enable the W501 to function not only as an audio switcher and volume controller, but also as a basic PA system for larger meeting rooms; thereby eliminating complicated and costly additional audio hardware and cabling.
The W501 incorporates BrilliantColor™ technology to produce stunningly bright images with perfectly balanced, life-like colours.
Easy installation - 1.5x zoom and Lens Shift
The W501 can project a 100” diagonal image from any distance between 3.12m and 4.67m. The Lens Shift system can be used to adjust the vertical position of the projected image within the range detailed in the diagrams below.
When replacing existing projectors, the 1.5x zoom and Lens Shift systems greatly increase your installation flexibility.
DICOM simulation mode
Designed specifically for larger meeting rooms and lecture theatres, the EH501 includes a special DICOMsim mode that has been specially tuned for viewing greyscale images, perfect for viewing X-rays and scans during medical training.*
*The W501 is not suitable for use in medical diagnosis.
Clear, focused Images
DarkChip3™ from Texas Instruments, combined with Eco+ dynamic lamp technology produce a stunning 15,000:1 contrast ratio for pin sharp graphics and crystal clear text. Crisper whites, ultra-rich blacks makes images come alive and text easier to read - ideal for business and education presentations.
True WXGA Resolution
Documents and presentations will appear as sharp and detailed as they do on your widescreen laptop in WXGA (1280 x 800) resolution, which also gives you 30% more pixels than an equivalent XGA projector.
System integration and control
Using the free Crestron Roomview software, multiple W501 can be monitored over LAN and also provide the user with an email message alert in case an error occurs or a lamp fails. Cut up to 30% from your energy bills using 24-hour automated power scheduling to ensure that projectors power off when not in use.
The web browser interface and full support for Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols, allow almost all aspects of the W501 to be controlled across a network, reducing installation costs and keeping you in control, wherever you are. While RS-232 connectivity ensures legacy support for existing control systems.
Easy lamp replacementIn applications requiring smooth continuous operation, minimising service time is essential. The W501 lamp can quickly be replaced without the need to remove the projector from where it is installed.

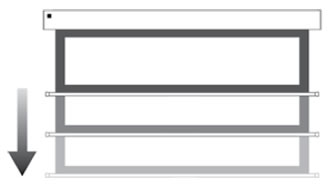

+12v TriggerPower on both your projector and screen at the touch of a single button. For ultimate convenience, connect an Optoma electric screen directly to your W501.For more info on Optoma screens, please visit www.optomaeurope.com
The most intuitive way to present
Instantly present from your phone or tablet using the free App: VueMagic. Available for both Android and iOS devices, VueMagic. gives you the freedom to move around the room, share ideas and connect with your audience like never before, to create a more collaborative experience for everyone.
Use your device’s touch screen to browse, flick between slides and pinch-to-zoom.
SCAN BARCODE TO DOWNLOAD VueMagic

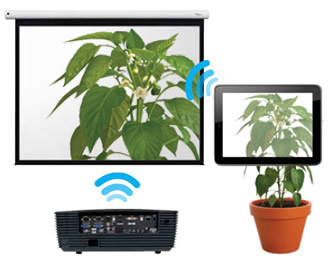

Mobile Video Streaming
Stream your mobile device’s camera feed directly to your projector to turn it into a portable visualiser; Ideal for sharing ideas with larger groups.

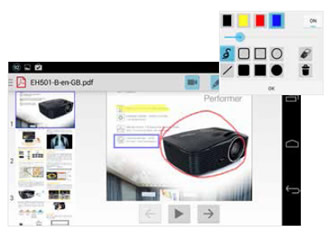

Emphasise the Key Points
Annotate directly onto your presentations in multiple colours, either freehand or using the tools provided.
Eco+ technology from Optoma increases our commitment to reducing the impact we all make on the environment
Saving energy, saves money! Eco+ technology reduces the power consumption to as little as 30%. This intelligent feature also has a positive effect on the lamp life, increasing it up to 70% while lowering the total cost of ownership and reducing maintenance*.
~ 100% Power consumption
~ 30% Power consumption
Auto power off
There may be instances when the projector is left running when not in use. To help save energy if the projector is left running and no source is detected, the “Auto Power Off” feature automatically turns off the projector after a set period of time.
Eco AV mute
Stay in control of your presentation with the Eco AV mute feature. Direct your audience’s attention away from the screen by blanking the image when no longer needed. This also instantly reduces the power consumption to 30%, further prolonging the life of your lamp.
100% Power consumption
30% Power consumption
To achieve the maximum 6500hrs2 lamp life, the projector should be operating in Eco+ mode and the auto power off feature should be enabled to automatically switch off the projector if it is accidentally left on. Enabling the <0.5W standby mode ensures the minimum energy consumption when the projector is not switched on.
We know that improving our products is the best way to reduce our impact on the environment. That’s why at Optoma, we design our products to have a long usable life, use fewer materials, ship with the minimum packaging and be free of all possible toxic substances. Naturally, energy efficiency and being recyclable are built in at the design stage. With each new product, we strive towards minimising our environmental impact. For full details of Optoma Project Green please visit our website.
